TRITITORY

Unrivalled modular lighting solution for high-power industrial, tunnel, large area and sport applications

Description

Sport

Sport facilities
Автостоянки

Car parks
Акценти та архітектурна підсвітка

Accent & architectural
Великі території

Large areas
Industriële hallen & magazijnen

Industrial halls & warehouses
Tunnels

Tunnels & underpasses

With multiple combinations of lumen packages and light distributions, TRITITORY is the ideal tool to provide an efficient multi-purpose lighting solution for industrial and other outdoor environments.

Available in various sizes, this compact luminaire perfectly integrates environments to provide the exact lighting requirements for the space to be lit. Delivered with a
mounting bracket and also available with a post-top fixation, it can be adjusted on-site for a precise optical control.
  • Cost-effective LED lighting solution

    • Equipped with the latest cutting-edge technology for high performance, a long lifespan and an effective thermal management, TRITITORY guarantees a performing solution that will reduce energy and maintenance costs as well as decrease the quantity of luminaires that need to be installed.

  • Versatile layouts and sizes

    • TRITITORY enables any type of configuration, ensuring flexibility to manage crucial aspects such as weight, access, environment layout and size. It helps the design in demanding applications such as tunnels and high-mast installations.

Perfect for sports lighting

TRITITORY is also perfect for lighting sport venues including large stadiums when excellent colour rendering and vertical illumination are required for high-definition TV recording and broadcasting, to avoid flickering and capture vivid images for viewers at home. Available with precise photometric distributions, the TRITITORY guarantees visual comfort, excellent visibility, uniformity and colour rendition for both the players and the spectators so that they may enjoy every minute.

Characteristics

Recommanded installation height (m)
6.0 -
45.0
Compliance
CE mark
Electrical class
Class I
Nominal voltage
220-240V AC – 50-60Hz
Surge protection (kV)
10
Control protocol(s)
0-10v
DALI
Luminaire output flux (lmm)
6645 -
60894
Power consumption (W)
50.0 -
398.0
Luminaire efficacy - up to (lm/W)
157
For the lumen output and efficacy reference above was based on CREE LED chip. For the OSRAM LED chip references, consult our Sales Representative.
LED colour temperature
Warm White 727
Warm White 730
Neutral White 740
Colour rendering index (CRI)
70
Upward Light Output Ratio (ULOR)
0%
ULR
0%
ULOR may be different according to the configuration. Please consult our Sales Representative.
Housing
Die-casting Aluminum
Optic
Polycarbonate
Protector
Tempered Glass
Standard colour
RAL 9005 Jet black
Tightness level
IP 66
Impact resistance
IK 08
All configurations
54,000h
Lifetime hours may be different according to the configuration. Please consult our Sales Representative.
Operating temperature range (Ta)
-30°C up to +45°C / -22°F up to 113°F with wind effect
Depending on the luminaire configuration. For more details, please contact our Sales Representative.

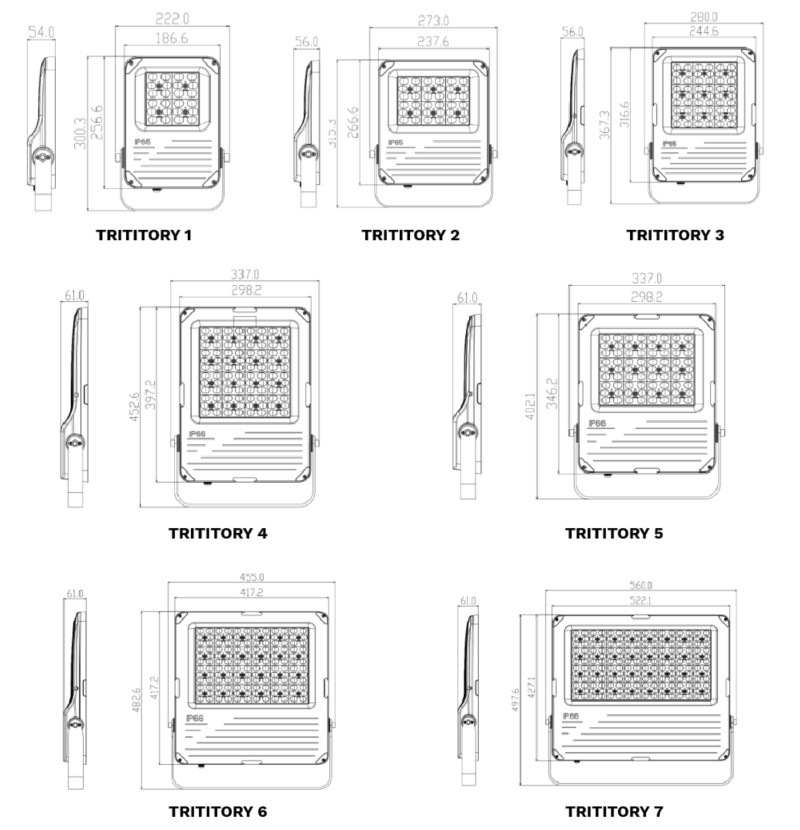

Dimensions and mounting

AxBxC (mm | inch)
TRITITORY 1 : 187x257x54 | 7x10x2
TRITITORY 2 : 238x267x56 | 9x11x2
TRITITORY 3 : 245x317x56 | 10x12x2
TRITITORY 4 : 298x397x61 | 12x16x3
TRITITORY 5 : 298x346x61 | 12x6x3
TRITITORY 6 : 417x417x61 | 16x16x3
TRITITORY 7 : 522x427x61 | 21x17x3
Mounting possibilities
Surface mounting
Bracket enabling adjustable inclination
Mounting may be different according to the configuration. Please consult our Sales Representative.
