AVENTO LT

A robust lighting solution optimized to operate in hot, demanding environments while providing consistent efficacy over time and offering unmatched value.

Description

Hoofdwegen & woonstraten

Urban & residential streets
Bridge | Bruggen

Bridges
Fiets

Bike & pedestrian paths
Залізничні станції та метро

Railway stations & metros
Автостоянки

Car parks
Pleinen en voetgangersgebieden

Squares & pedestrian areas
Wegen

Roads & motorways

Being at the core of urban and road infrastructure, lighting plays a crucial role in cities’ lives. From this perspective, we firmly believe lighting should be both cost-effective and high-performance. Based on our proven road LED lighting experience, we have developed AVENTO LT, a budget - friendly yet exceptionally efficient road lighting solution. This luminaire has been designed with a focus on compactness, cost-efficiency and superior performance. AVENTO LT is a robust lighting solution optimized to operate in hot, demanding environments while providing consistent efficacy over time and offering unmatched value. Experience the best in performance with a quick return on investment, with the AVENTO LT LED lighting solution.
  • Easy opening/closing

    • The luminaire can be opened without any tools thanks to two stainless steel spring clamps. A clear, loud clicking sound confirms that the luminaire is closed.

  • Easy flexibility

    • In addition to using sustainable and recyclable materials, AVENTO LT minimizes waste to support circular economy thanks to its several sizes that provide the most appropriate solution with the lowest quantity of raw materials.
    This street lighting solution is also dark sky compliant, generating zero up light thanks to its 0% ULOR.

Lighting flexibility

AVENTO LT offers good photometric platforms, designed for performance, compactness and versatility. The 5050 SMD LED chip is a high-performance surface-mounted diode known for its brightness and efficiency. Measuring 5.0mm x 5.0mm, the 5050 chip houses three separate diodes in a single casing, allowing it to emit a higher lumen output in a single color.

Characteristics

Recommanded installation height (m)
9.0 -
15.0
Compliance
CE mark
ENEC certified
Electrical class
Class I EU
Nominal voltage
120-277V – 50-60Hz
Surge protection (kV)
10
Control protocol(s)
0-10v
DALI
Socket option(s)
NEMA 7-pin (optional)
Luminaire output flux (lmm)
2598 -
46786
Power consumption (W)
20.0 -
320.0
Luminaire efficacy - up to (lm/W)
148
For the lumen output and efficacy reference above was based on CREE LED chip. For the OSRAM LED chip references, consult our Sales Representative.
LED colour temperature
Warm White 727
Warm White 730
Neutral White 740
Colour rendering index (CRI)
70
Upward Light Output Ratio (ULOR)
0%
ULR
0%
ULOR may be different according to the configuration. Please consult our Sales Representative..
Housing
Die-casting Aluminum
Optic
Polycarbonate
Protector
Tempered Glass
Standard colour
RAL 7040 window grey
Tightness level
IP 66
Impact resistance
IK 08
Vibration test
Compliant with ANSI C 136-31 standard, 3G load
Access for maintenance
Tool-less access to gear compartment
All configurations
100,000h - L70
Lifetime hours may be different according to the configuration. Please consult our Sales Representative..
Operating temperature range (Ta)
-20°C up to +55°C / -68°F up to 131°F with wind effect
Depending on the luminaire configuration. For more details, please contact our Sales Representative.

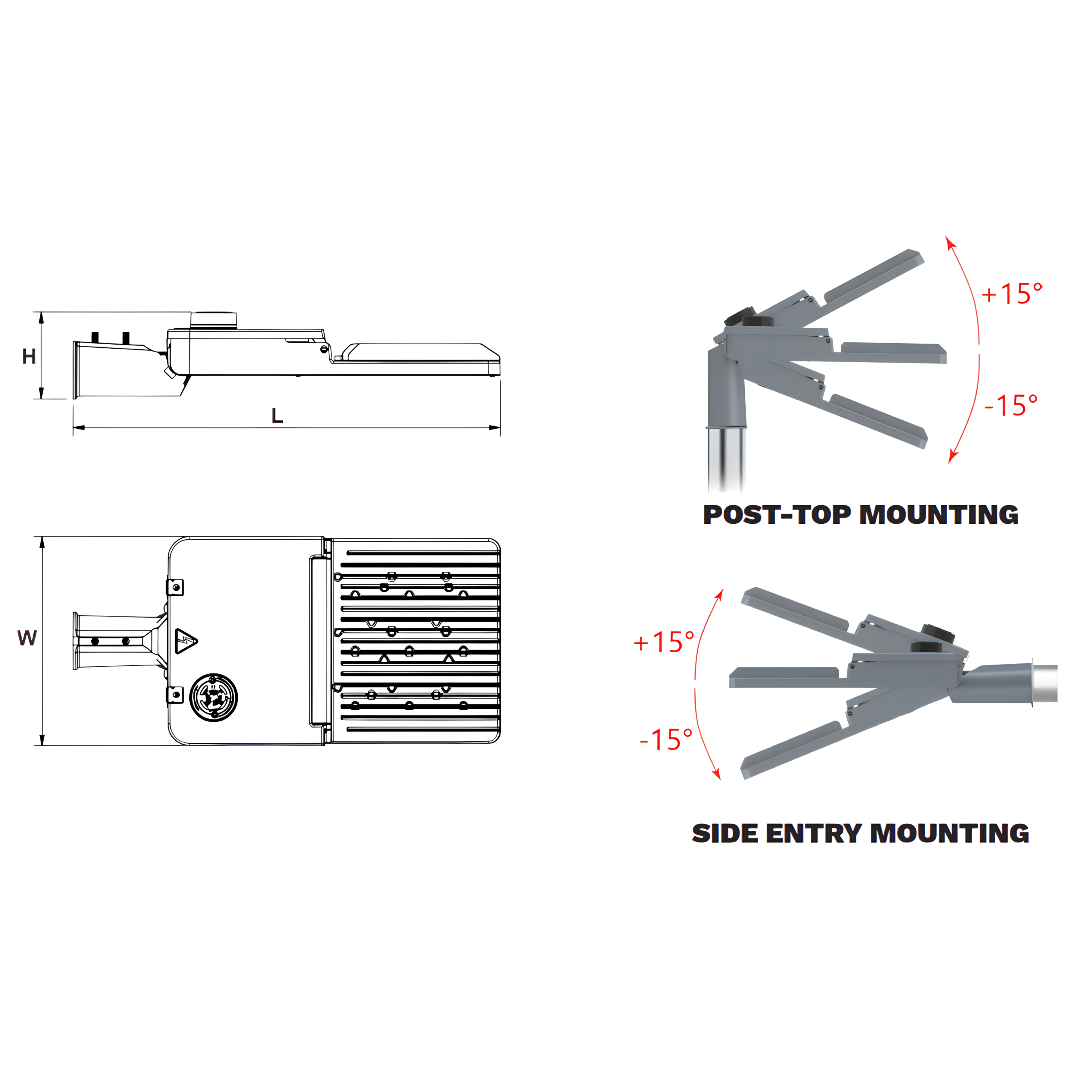

Dimensions and mounting

AxBxC (mm | inch)
AVENTO LT 1 : 572x248x202 | 23x10x8
AVENTO LT 2 : 620x268x202 | 25x11x8
AVENTO LT 3 : 678x288x202 | 27x11x8
AVENTO LT 4 : 714x288x202 | 27x11x8
Mounting possibilities
Pole Mounting
Side-entry slip-over – Ø60mm
Mounting may be different according to the configuration. Please consult our Sales Representative..
