GHENTI

Flexible lighting solution for all areas of the tunnel.

Description

Tunnels

Tunnels & underpasses
Industriële hallen & magazijnen

Industrial halls & warehouses

GHENTI LED is an energy-efficient lighting solution adapted to a wide range of different tunnel applications, including town and motorway tunnels and underpasses, to ensure safety at all times. This robust luminaire offers a high level of protection against corrosion, impacts and vibrations. It provides a low maintenance versatile solution. The GHENTI LED is available with different mounting systems that enable the luminaire to be inclined on-site for an optimal photometry.
  • Improved tunnel safety

    • Thanks to the high performance of its photometric engine, that can be adapted to a wide range of different tunnel applications, GHENTI LED is the optimal solution to ensure safety in tunnel areas at all times.

  • Low maintenance and flexible solutions

    • Available in 5 sizes, GHENTI LED enables a flexible solution. The inclination angle can be adjusted on-site for an optimal photometry. This tunnel luminaire requires low maintenance due to its sturdy mechanical design, which offers a high level of protection against impacts, vibrations and even corrosion.

Towards circular economy

GHENTI LED follows the principles of the circular economy. Both the photometric engine and the drivers can be replaced on-site to take advantage of any future technological developments. Each LED optical compartment can be replaced individually, leading to a longer life span of the luminaire.

Characteristics

Recommanded installation height (m)
3.0 -
8.0
Compliance
CE mark
Electrical class
Class I
Nominal voltage
Standard: 90-305V – 50Hz
Surge protection (kV)
10
Control protocol(s)
1-10V
DALI
Socket option(s)
NEMA 7-pin (optional)
Luminaire output flux (lm)
2455 -
48569
Power consumption (W)
20.0 -
320.0
Luminaire efficacy - up to (lm/W)
151
LED colour temperature
Warm White 722
Warm White 727
Warm White 730
Neutral White 740
Cool White 750
Colour rendering index (CRI)
70
Housing
Die-casting Aluminum Alloy
Optic
Polycarbonate
Protector
Tempered Glass
Standard colour
RAL 9007
Tightness level
IP 66
Impact resistance
IK 08
Vibration test
Compliant with ANSI C 136-31 standard, 3G load
All configurations
50,000h - L90
Lifetime hours may be different according to the configuration. Please consult our Sales Representative.
Operating temperature range (Ta)
-40°C up to +50°C / -40°F up to 122°F with wind effect
Depending on the luminaire configuration. For more details, please contact our Sales Representative.

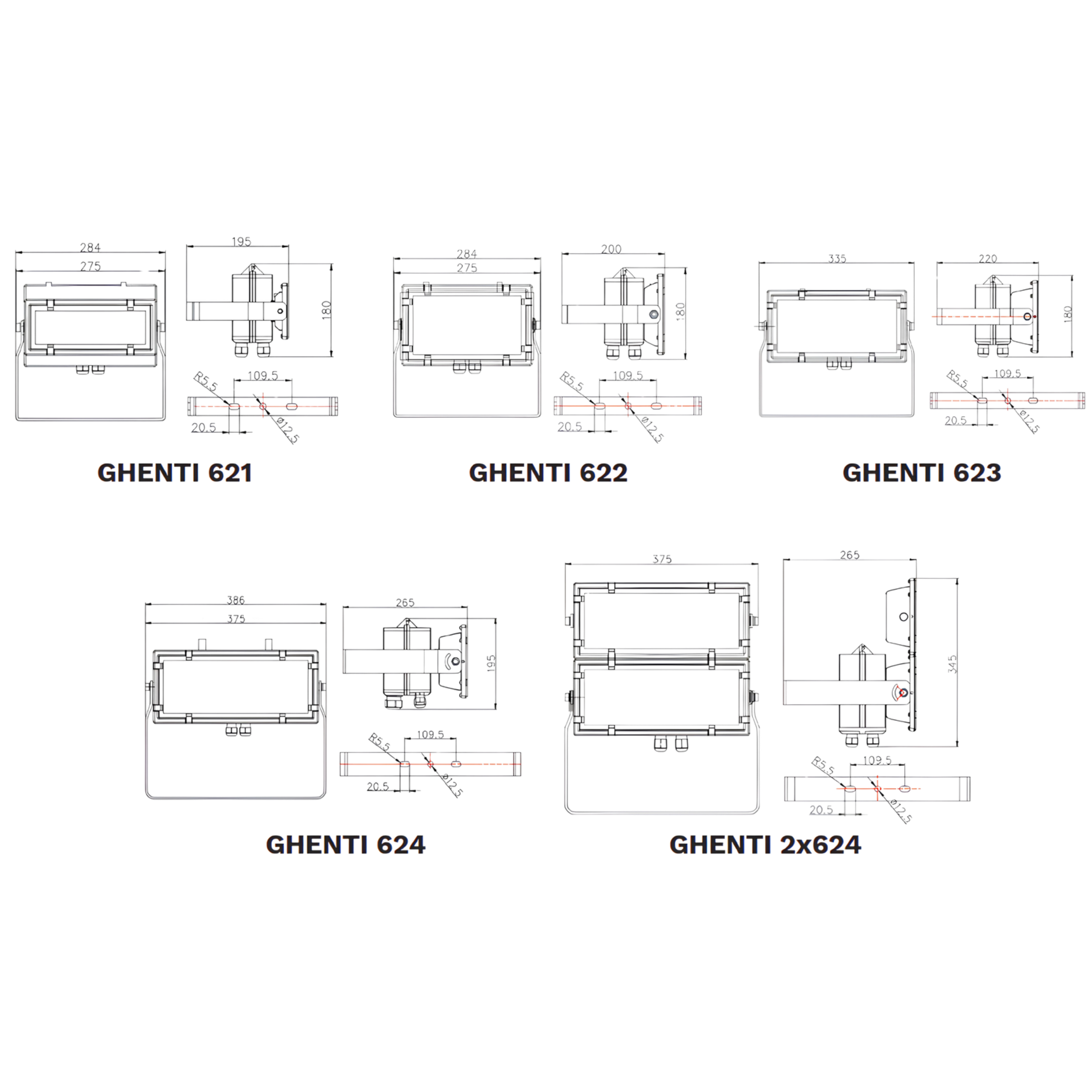

Dimensions and mounting

AxBxC (mm | inch)
GHENTI 621 : 275x180x195 | 11x7x8
GHENTI 622 : 275x180x200 | 11x7x8
GHENTI 623 : 335x180x220 | 13x7x9
GHENTI 624 : 375x195x265 | 15x8x10
GHENTI 2x624 : 375x345x265 | 15x14x10
Weight (kg | lbs)
GHENTI 621 : 3.1 | 6.8
GHENTI 622 : 4.58 | 10.1
GHENTI 623 : 4.87 | 10.8
GHENTI 624 : 6.31 | 13.9
GHENTI 2x624 : 11.50 | 25.4
Mounting possibilities
Surface mounting
Suspended mounting
Bracket enabling adjustable inclination
Mounting may be different according to the configuration. Please consult our Sales Representative.
